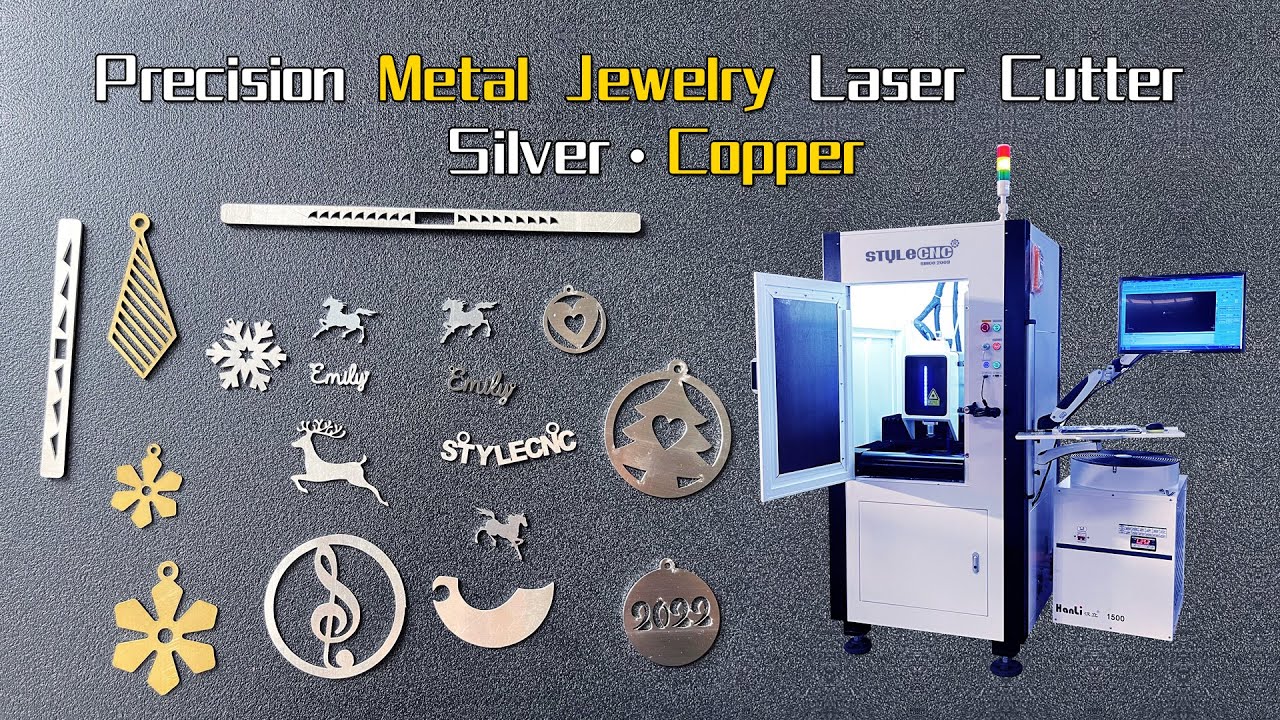

ST-FC3030 is a metal jewelry laser cutter to cut out personalized rings, earrings, pendants, bracelets, necklaces, brooches made of silver, gold, brass, copper.

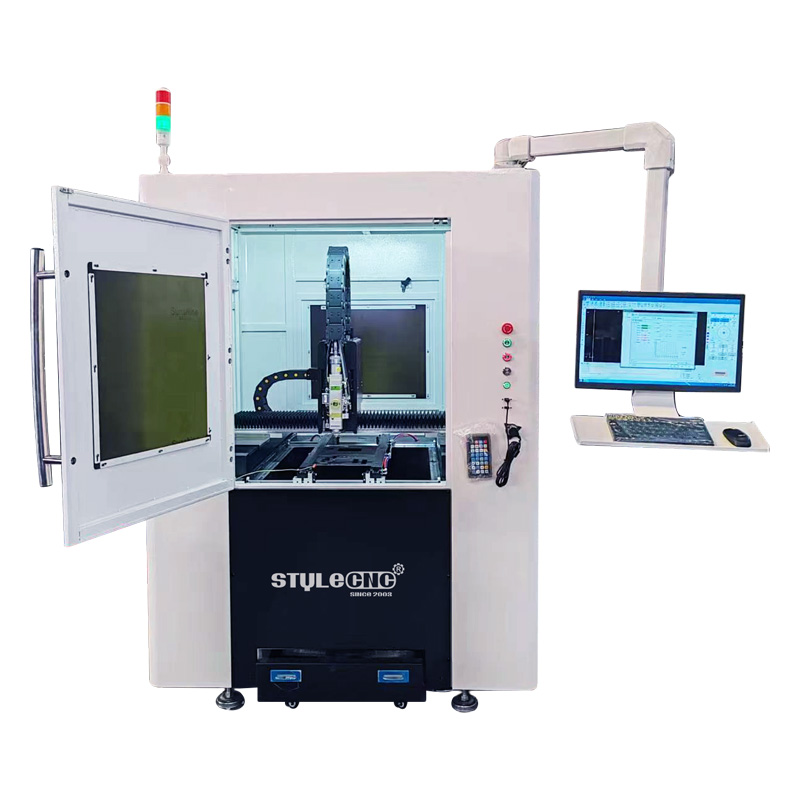

ST-FC3030 metal jewelry laser cutter is an automated fiber laser cutting machine used to precise cut gold, silver, colored stainless steel, copper, brass, titanium and some precious metals to make personalized necklaces, bracelets, pendants, earrings, brooches, rings, cufflinks and other personal ornaments.
ST-FC3030 uses the Raytools fiber laser cutting head from Swiss to ensure that the metal jewelry cuts are smooth and clean without burrs. Auto focus laser head is optional for bumpy metals. ST-FC3030 comes standard with the JPT laser generator, with options of 1000W, 1500W, 2000W, and 3000W for metals of different thicknesses. In additional, you can choose from different laser brands including Raycus and IPG for your actual custom metal jewelry needs and budget. In terms of software, CypCut is a user-friendly multilingual laser control software, easy to use for beginners and experts.
Raytools Fiber Laser Cutting Head (Swiss)
Make sure the cut surface is smooth and free of burrs. An autofocus laser head is an option for bumpy metals.
JPT Fiber Laser Generator
JPT fiber laser generators are available in 1000W, 1500W, 2000W and 3000W laser power options.
CypCut Control Software
Multilingual interface with on-the-fly cutting function. Support AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, NC, GBX and other file formats.
Water Chiller
Water chiller adopts dual temperature dual control mode, which can be switched to intelligent temperature control mode.
PC based program with Remote Control
The controller can remotely control the laser machine working within 10m.
TBI Ball Screw Transmission
High precision TBI grinding ball screw transmission system features with high precision, fast speed and long life, provides strict support for quenched and ground helical gears, makes the load drive compact and effectively reduces the drive torque.
Japanese Servo Drive System
Adjustment-free features for instant use and auto-tuning features for improved performance. With the ball screw drive system, the cutting speed and precision are improved.
Automatic Pneumatic Clamping System
It can automatically clamp the metal strip for cutting.
Movable Blade Table
ST-FC3030 comes with a blade table for cutting thicker metals that cannot be fixed with a clamp table.
Automatic Rail Lubrication System
The frequency of use can be set by adjusting parameters via a computer.
ST-FC3030 is professional for metal jewelry cuts, such as rings, earrings, necklaces, bracelets, brooches, pendants, cufflinks, and other personal ornaments.
ST-FC3030 is available to cut gold, silver, brass, copper, colored stainless steel, silicon steel, carbon steel, aluminum, titanium, galvanized sheet, alloy, zinc, and some precious metals.
Model | ST-FC3030 |
Working Area | 300mm x 300mm |
Laser Brand | JPT Brand (Raycus and IPG for Option) |
Laser Source | Fiber Laser |
Laser Wavelength | 1080nm |
Repeated Positioning Precision | ±0.03mm |
Max. Running Speed | 40m/min |
Max. Acceleration | 0.5G |
Driving Mode | High Precision Ball Screw Drive |
Voltage | 220V/50HZ/60HZ |
