Mini compact CO2 laser marking machine with 30W Synrad RF laser tube is used for small business of wood, MDF, plywood, acrylic, plastic, fabric, and leather.
CO2 laser marking machine is a type of gas laser that uses CO2 and auxiliary gas filled in the discharge tube to generate glow discharge through high voltage, so that the gas releases a laser beam with a wavelength of 10.64um, amplifies the laser energy, and scans through the galvanometer, as well as focuses through the F-Theta lens, with the control of the computer and the laser control card, graphics, patterns and texts will be marked on the parts according to the user's design.
• STJ-30C uses CO2 RF laser tube as the laser source. The two-dimensional high-speed scanning mirror swings at a predetermined angle under the control of the computer, and the laser is focused on the surface of the workpiece through the F-θ lens to form an image to realize marking and graphic processing.
• Using metal CO2 laser tube, fine beam quality, stable power output, high marking accuracy, long service life, can work for 20,000 hours maintenance-free, suitable for batch engraving. One time investment, lifetime benefit.
• Using a high-speed scanning mirror, it can complete the graphic fine marking process in the shortest time.
• The use of simple structure, anti-wear, and non-rust components makes the system have the most stable performance and motion precision.

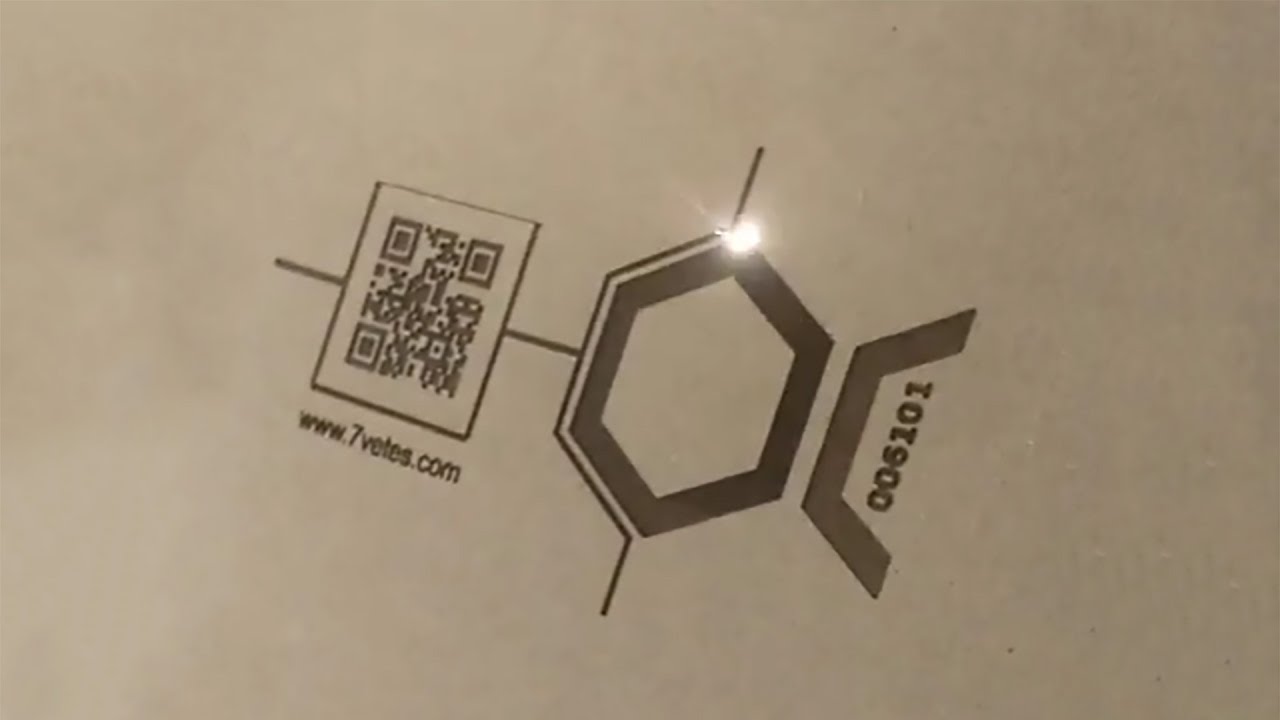

• STJ-30C can automatically mark patterns, serial numbers and barcodes, and the marks are clear and not easy to wear.
• Using computer control, the operation interface is user-friendly and easy to use.
• Extensive equipment performance and 24-hour uninterrupted competitiveness meet the needs of large-scale online and offline industrial production.
STJ-30C can engrave a variety of non-metallic materials including wood, paper, PVC, ABS, epoxy resin EP, acrylic, leather, glass, fabric, and unsaturated polyester, which is used in woodworking, food processing, packaging, arts, crafts, gifts, clothing, leather products, paper products, textiles, signs, electronics, communications, clocks, glasses, printing, decorations and other industries.
Model | STJ-30C | |
Laser parameters | Optical Laser | CO2 RF laser tube |
Laser wavelength | 10.6µm | |
Average output power | 30W | |
Modulation frequency range | 20kHz~80kHz | |
Galvo parameters | Maximum speed | 7000mm/s |
Resolution | 0.001mm | |
Repositioning precision | 0.003mm | |
Optical output characteristics | Marking range | Maximum 300 x 300 mm |
Minimum line width | 0.015mm | |
Minimum height of characters | 0.2mm | |
Cooling system | Cooling way | Air cooling |
System properties | Laser power supply | 550W/AC220V/50HZ or AC110V/60HZ |
Environmental requirements | 0 ~ 35 ° C, 90% or humidity | |
Ik heb deze lasermarkeermachine 2 maanden geleden gekregen. Het is compact en lichtgewicht. Ik hou van deze graveur en het werkt geweldig. Absoluut de moeite waard. Ik zou zeggen dat het zeker voor zowel beginners als professionele lasermensen is. Het zal even duren voordat je alle instellingen begrijpt. Ik werk er nu een paar weken mee en ik begrijp nog steeds niet alles, maar ik krijg genoeg om hele mooie creaties te maken. Ik raad deze lasermarker ten zeerste aan voor iedereen die erover denkt er een aan te schaffen. Vergeet niet om geduldig te zijn en hoe meer je het gebruikt, hoe meer je erachter komt. Goede ventilatie is een must. Als je erover nadenkt, doe het dan gewoon. Ik beloof. Geweldige machine en goed gezelschap.
